Optimizing Microsegmentation by Leveraging Data Diodes, Guards, HardSec Filters and Cross Domain Solutions to Strengthen Network Security.

Recent warnings regarding Industrial Control Systems (ICSs) have urged organizations to keep these systems off Internet-accessible networks. The cautionary advice underscores a crucial vulnerability: critical flaws in interconnected systems reveal the inherent risks of relying solely on microsegmentation and other logical network controls to secure Internet-connected environments. This highlights the need for a more robust, layered approach to network security that goes beyond traditional segmentation methods.

The Limitations of Microsegmention

Microsegmentation involves configuring firewalls to allow only documented and expected traffic flows. Preventing undesired and unexpected traffic on the network. However, it does not guarantee that the authorized traffic is always expected or desired. This approach relies on firewalls running as trusted processes within operating systems, requiring every device in the network to have built0in trusted firewalls. This requirement often excludes ICSs and other IoT devices, making it necessary to combine computer-based microsegmentation with microsegmentation enforced by dedicated firewall appliances.

Enhancing Microsegmentation for Comprehensive Network Security

Implementing microsegmentation with dedicated network appliances is an effective security technique, controlling between ICSs, IoT devices, and other systems. This approach prevents many network-based attacks but is only effective if all devices needing to communicate with an Internet-accessible computer can act as vulnerable bridges between microsegments and the Internet.

While microsegmentation is a valuable tool and best practice for securing critical networks. There are instances where it is insufficient for ensuring safety or security. In such cases, additional techniques like data diodes (unidirectional gateways), guards, bi-directional gateways, hardsec filtering devices or Cross Domain Solutions (CDS) should be employed to provide protection beyond what microsegmentation alone can offer.

Enhancing Data Security with Unidirectional Data Diodes

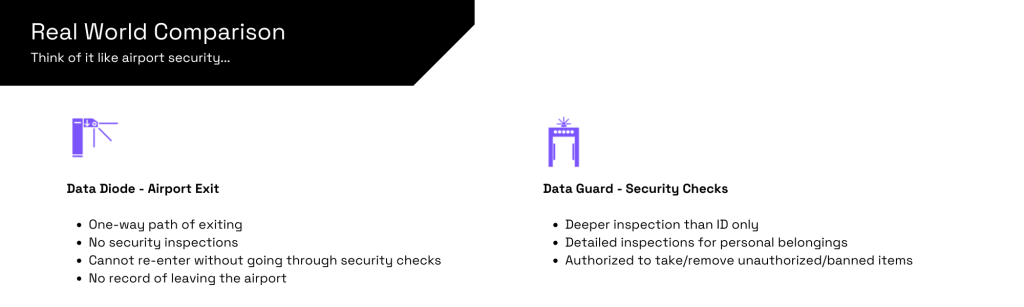

A data diode is a device that ensures unidirectional data transfer through a hardware separation boundary. Allowing data to move in only one direction. Sophisticated data diodes function as gateways or proxies, handling complex devices, such as ICSs, to send data to unprotected devices, like cloud-based digital twins, without exposure to the Internet.

However, an exposed system, such as a banking application, can send data to a protected system, such as an audit system. Data diodes only protect against traffic flowing in the wrong direction and do not prevent inappropriate traffic in the correct direction. The effectiveness of data diodes diminishes if multiple diodes create bidirectional connections between network segments. If bidirectional communication is necessary or there are concerns about data exfiltration or infiltration within approved flows. Data diodes should be supplemented with guards or replaced by guards or hardsec filtering devices to add content filtering to the communication path.

Microsegmentation and Guards

A guard is a system that filters all traffic flowing through it and is typically implemented with stringent security controls to ensure that software errors (such as a buffer overflow) cause the guard to fail closed instead of failing open. Some guards transform the data being filtered, normalizing it to ensure the data is safe, while other guards apply message-type specific rules to assure that only safe messages are being passed without attempting to transform the data. While data diodes protect against inappropriate data flows, guards protect against attempts to infiltrate data (such as malware) into a network and to exfiltrate data (such as confidential software code) from a network within an approved data flow.

The Role of Hardsec Filtering Devices in Network Security

A hardsec filtering device uses a field-programmable gate array (FPGA) or application-specific integrated circuit (ASIC) to filter data between seperate input and output pins. These filters offer stronger security assurances than guards but at the cost of flexibility in adapting to changing data flows. Hardsec filters can be configured for unidirectional data transfer, like data diodes, or to enable bidirectional flows, like guards.

Comprehensive Cross Domain Solutions

A Cross Domain Solution (CDS) is a comprehensive system that integrates multiple security technologies, including data diodes, guards and hardsec filtering devices, into a single, evaluated solution. Typically, a CDS combines a guard with data diodes or hardsec filters to ensure robust security. Beyond these core components, a CDS may also incorporate other devices, such as dynamic execution environments and filtering sidecars, within its security boundary. This integration provides a multi-layered defense mechanism, offering enhanced protection for sensitive data transfers across domains while maintaining strict security protocols.

Balancing Security and Scalability

Recent warnings that ICS vendors emphasize that ICS systems should only be deployed on networks isolated from the Internet. These warnings highlight the challenges of integrating ICSs and other critical IoT systems with digital twins, cloud analytics, and business systems. While microsegmentation remains a valuable tool for managing security risks, it must be complemented by strategic use of diodes, guards, hardsec filtering devices and Cross Domain Solutions to balance cloud scalability with the protection of critical assets.

To ensure robust security for your critical systems, consider integrating these advanced solutions into your network strategy.
